Read hyd and plotΒΆ

Minimum example

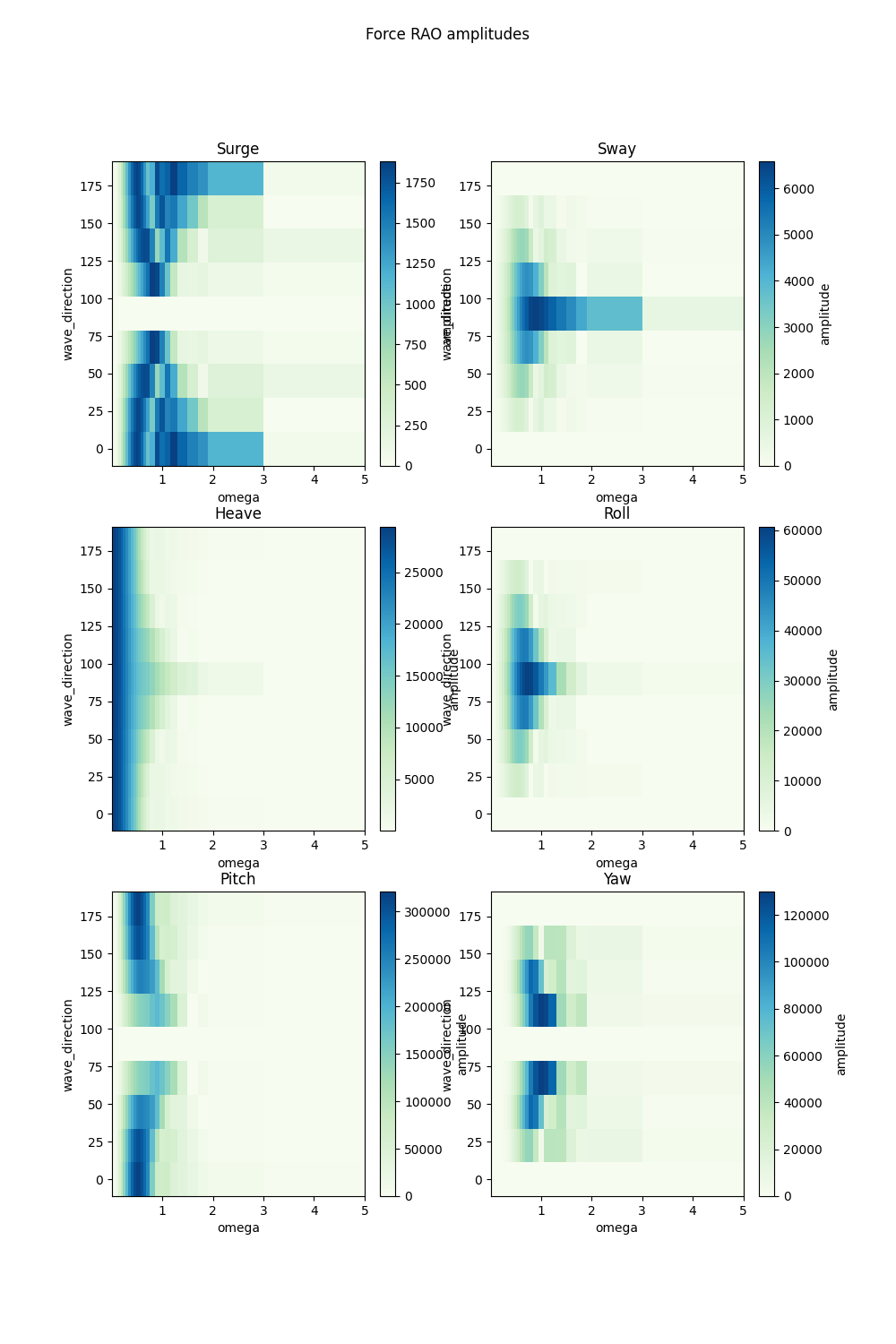

  • Force RAO amplitudes, Surge, Sway, Heave, Roll, Pitch, Yaw

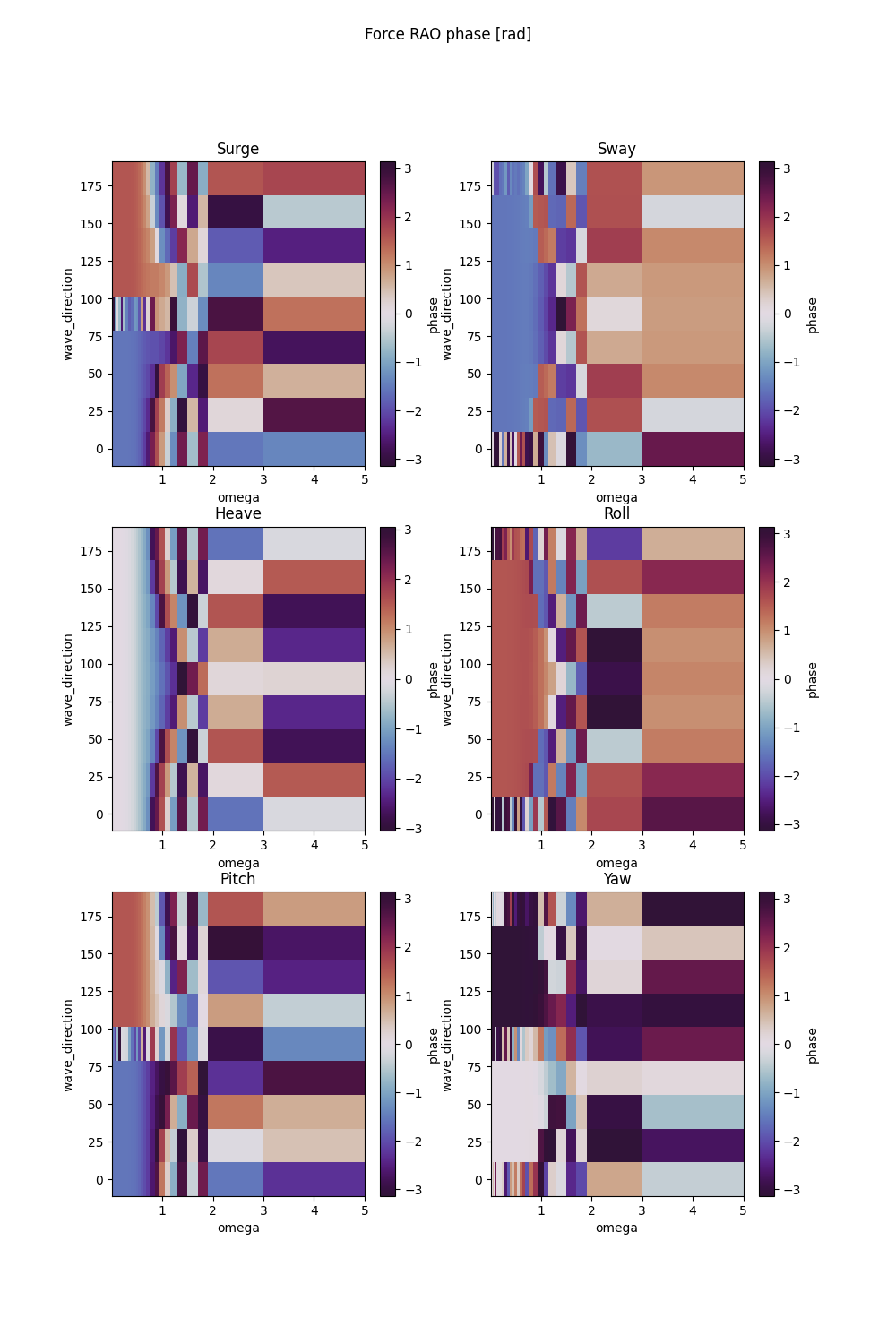

  • Force RAO phase [rad], Surge, Sway, Heave, Roll, Pitch, Yaw

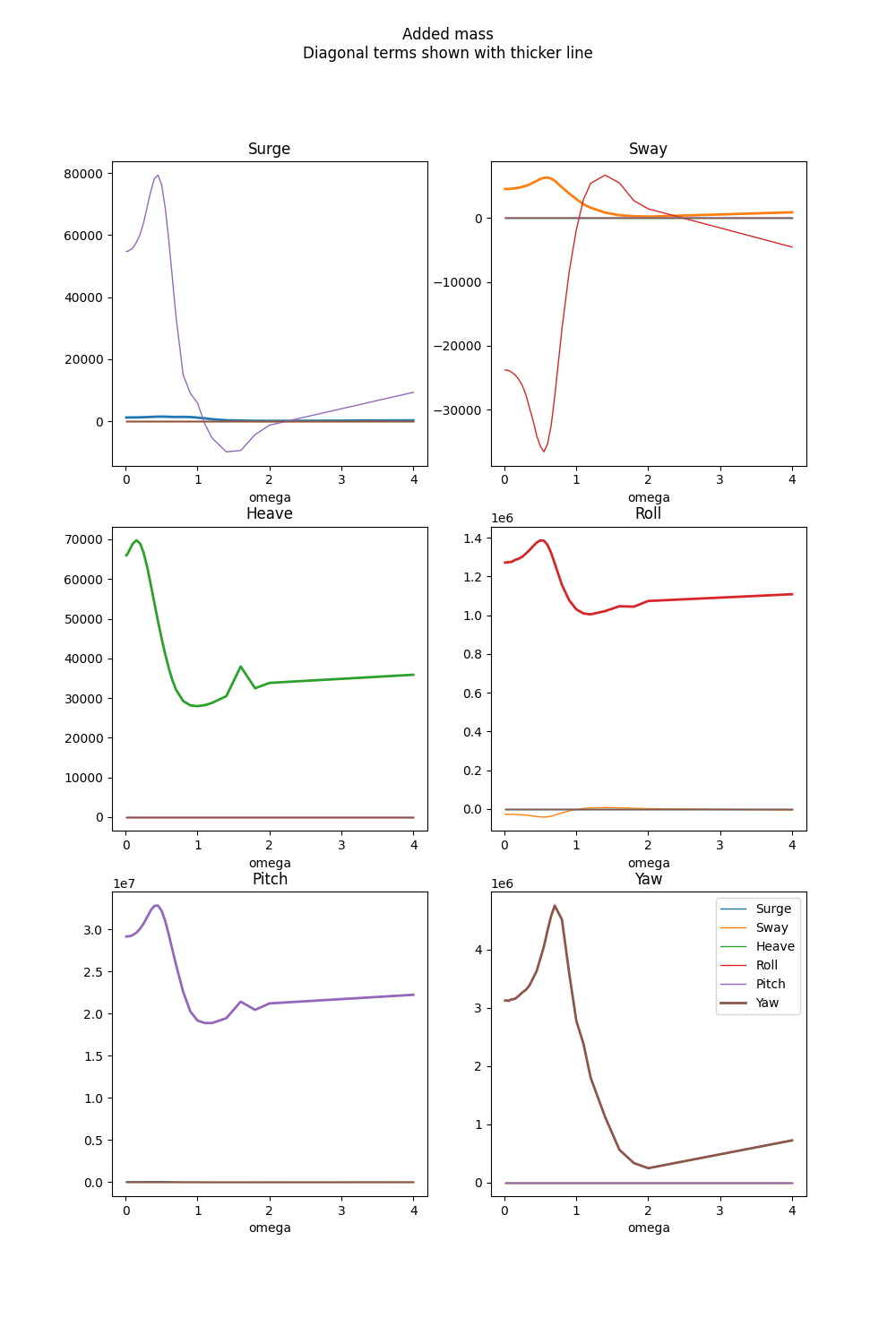

  • Added mass Diagonal terms shown with thicker line, Surge, Sway, Heave, Roll, Pitch, Yaw

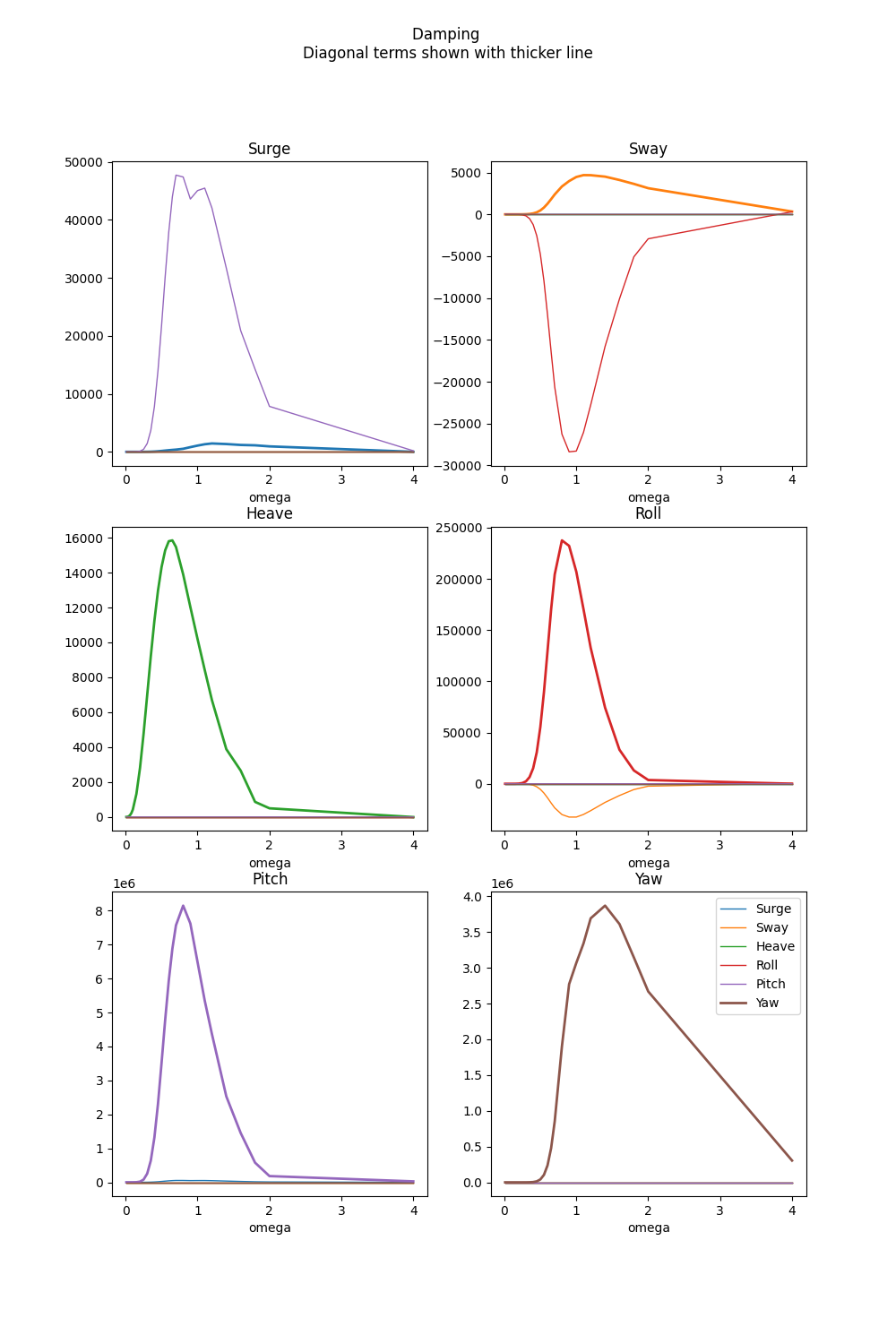

  • Damping Diagonal terms shown with thicker line, Surge, Sway, Heave, Roll, Pitch, Yaw
from mafredo import *

# First create the object
vessel = Hyddb1.create_from_hyd('barge.hyd')

# and finally plot
vessel.plot()

Total running time of the script: ( 0 minutes 2.850 seconds)
